Install SAP ADT Development ToolsIntroduction

The advent of the SAP HANA memory-based database technology introduced some new ways of manipulating data – Core Data Service (CDS) views and ABAP Managed Database Procedure (AMDP) classes.

It is possible to access these new types of objects using the ABAP Workbench that everyone will be familiar with from the ECC environment, however, this access is restricted to read-only; to create and modify these new objects a new development environment is required – ABAP Development Tools (ADT). ADT is a set of SAP-provided plug-ins that are installed on into the Eclipse development platform that is widely used by non-SAP developers.

The ADT environment also allows the development of all other objects – data dictionary objects, reports, classes, etc. ADT also supports other activities such as interactive debugging that were previously done in the ABAP Workbench.

CDS views are also available in the ECC environment. As well ECC now supports the HANA database for improved performance, so the ADT environment can be used in ECC systems as well as the newer S/4 HANA systems.

Although very different from the SAPGui based ABAP Workbench, many developers now prefer ADT for development in both HANA and ECC environments.



ADT Installation Prerequisites

Any personal computer that supports the SAPGui installation is also suitable for installing ADT. There are three components required for an ADT installation:

1.    A Java development kit (JDK);

2.    The base Eclipse integrated development environment (IDE);

3.    The SAP ADT plug-in components.

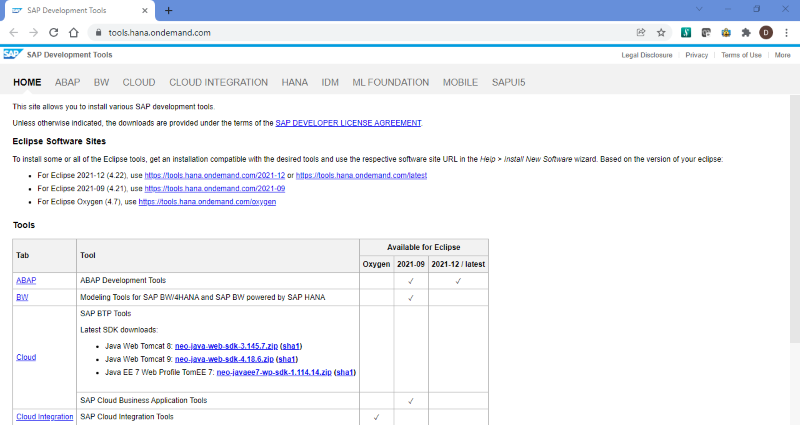

As both the Eclipse and the SAP components evolve, specific versions required will frequently change. SAP provides a site that lists current requirements at https://tools.hana.ondemand.com.

ADT Installation Prerequisites

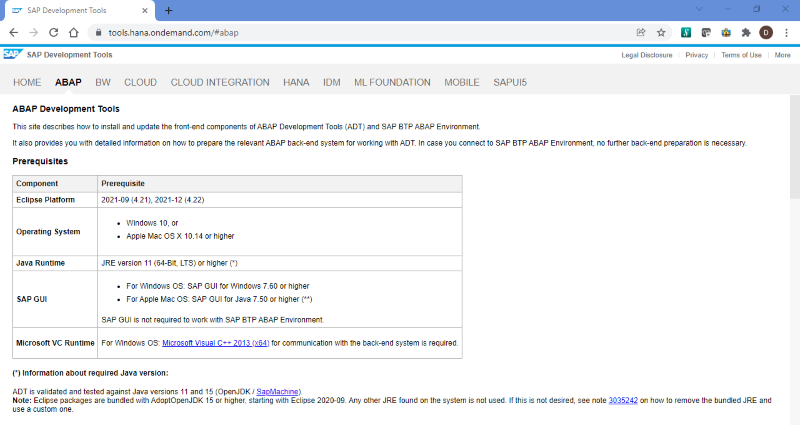

Click the “ABAP” link to go to the page showing full details of ADT installation requirements.

ADT Installation Prerequisites



This document is based on installation using a 64-bit Windows 10 PC.



Install JDK

First step is to install the Java development kit required for Eclipse installation. You can either install the industry standard JDK from Oracle Corporation available at https://www.java.com/en/, or the SAP-specific JDK available at https://sap.github.io/SapMachine/.

We will install the SAP JDK.

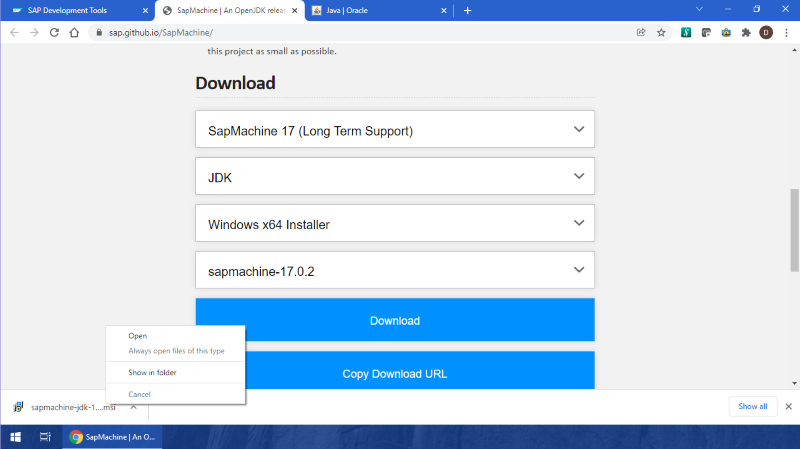

Go to https://sap.github.io/SapMachine/. Scroll down to the “Download” section of the page, select “Windows x64 Installer” then click the “Download” button.

Install JDK

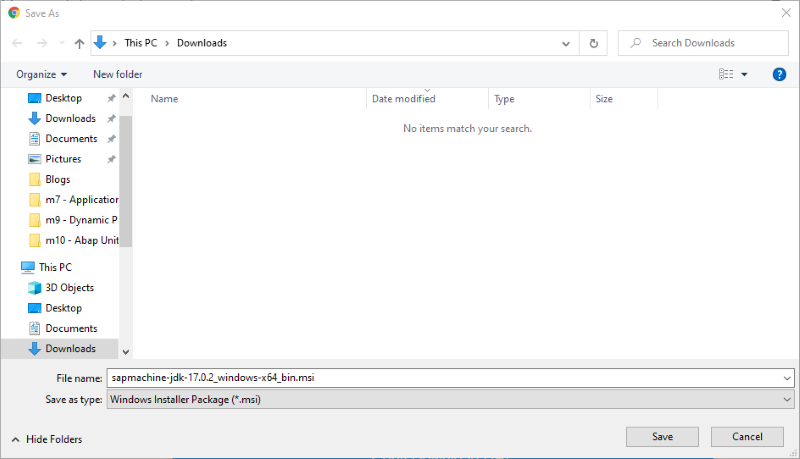

Save the Windows Installed Package file to Downloads folder.

Install JDK



Right-click the downloaded file and select “Open”.

Install JDK

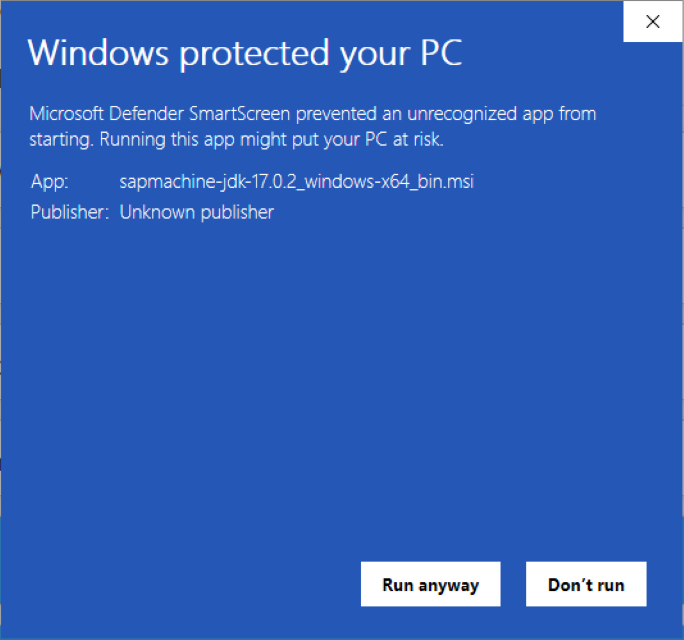

You may receive a security warning; click “Run anyway” to start the installation.

Install JDK



Click “Next” button.

Install JDK

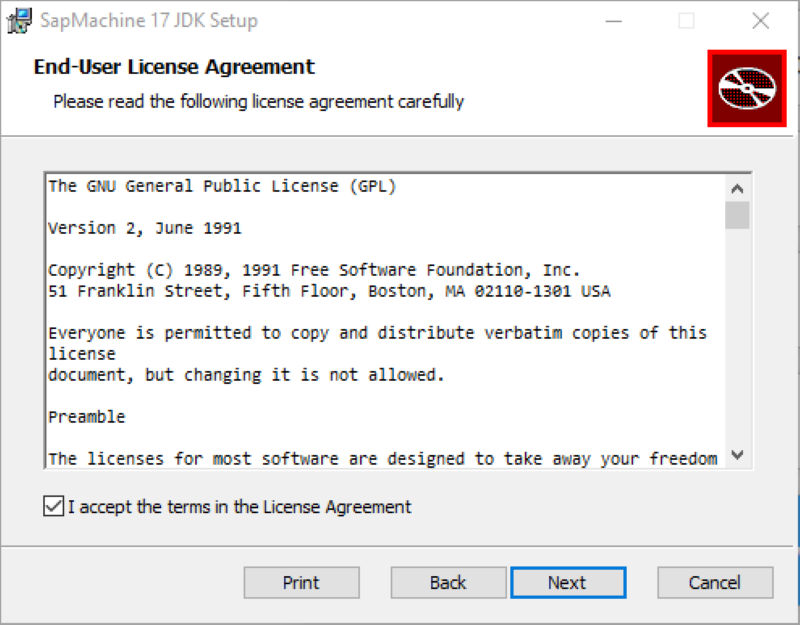

Accept the license agreement and click “Next”.

Install JDK

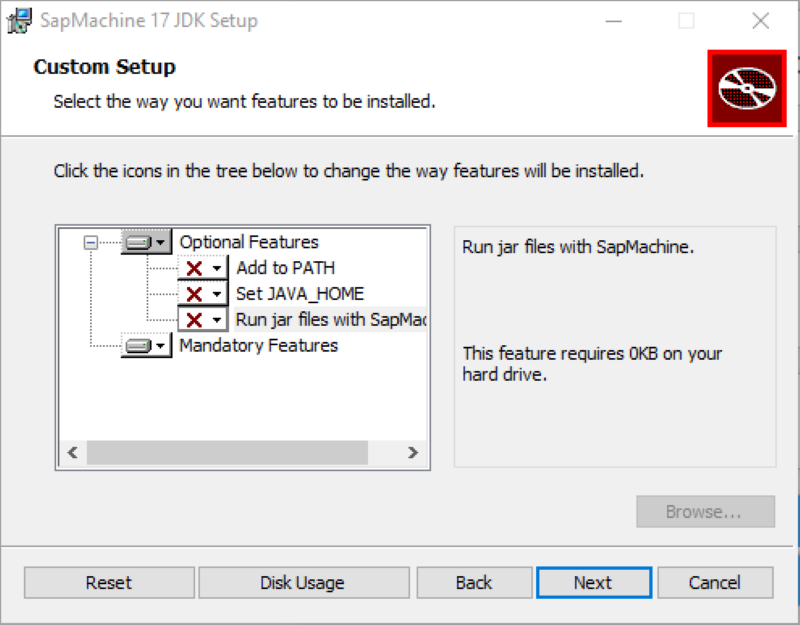

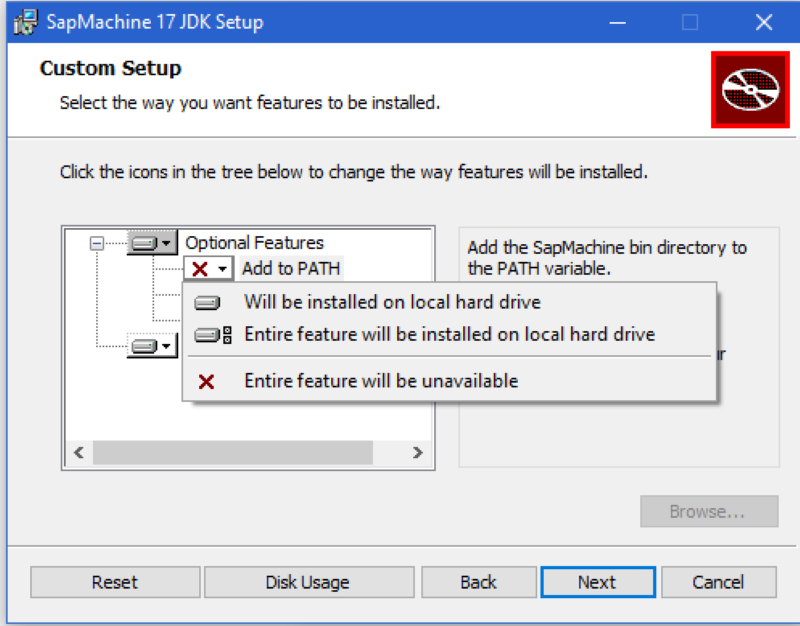

A setup options window is displayed.

Install JDK



As this is the only Java installation in the current PC environment, reset the “Unavailable” options (shown as red “X”) to “Entire feature will be installed on local hard drive”.

Install JDK



When all options have been changed, click “Next” button.

Install JDK

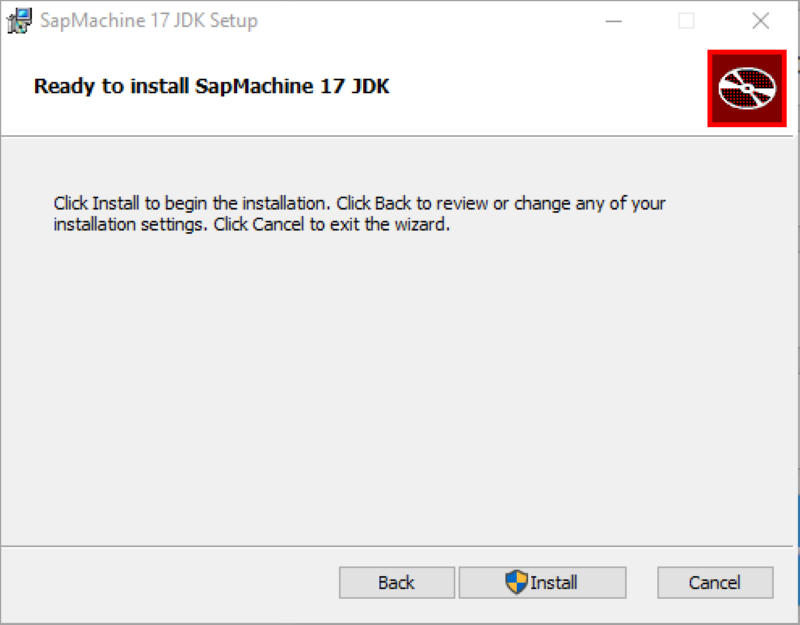

Click “Install” button.

Install JDK



Allow the installation to proceed if UAC prompt is displayed.

Install JDK

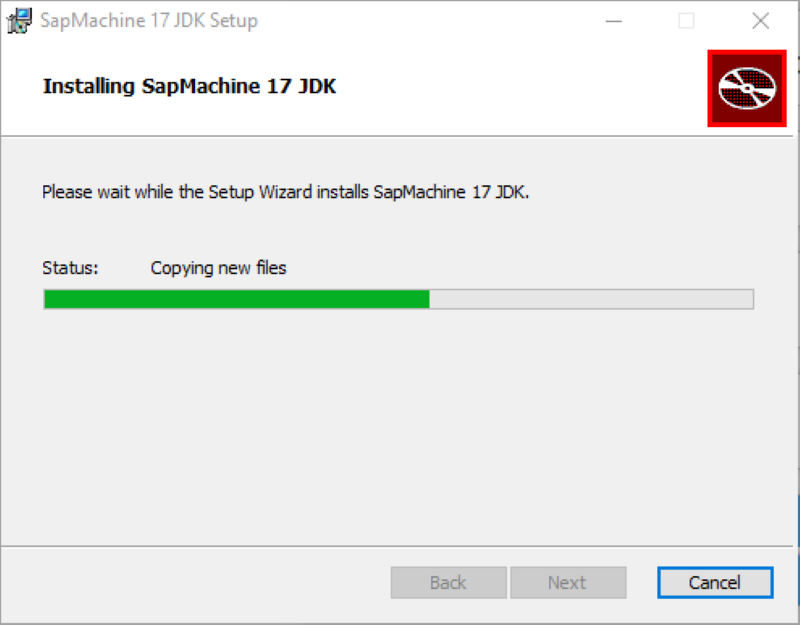

Installation will start; a progress window will be displayed.

Install JDK



Click “Finish” when installation is complete.

Install JDK



Install Eclipse IDE

After the JDK has been installed, second step is to install the Eclipse IDE.

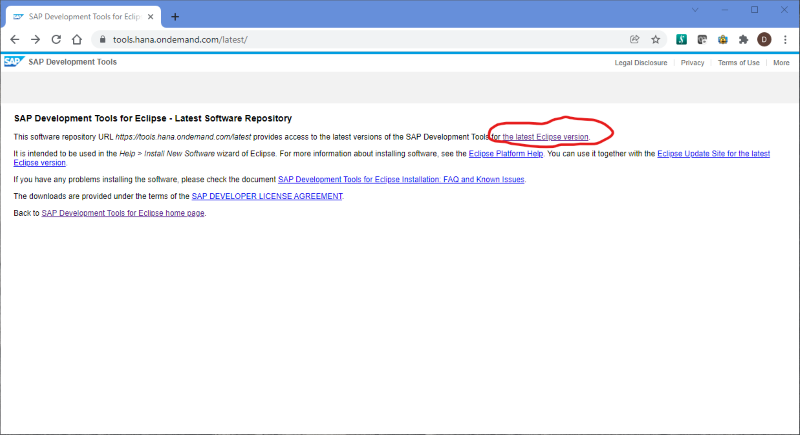

To obtain the latest current version of the IDE go to https://tools.hana.ondemand.com/latest/.

Click the link for “latest Eclipse version”.

Install Eclipse IDE



The Eclipse site defaults to the page for Eclipse installation packages. As we have already installed the SAP Java machine, click the toolbar link for “Eclipse Installer”.

Install Eclipse IDE



Then click the link for the Windows 64-bit installer.

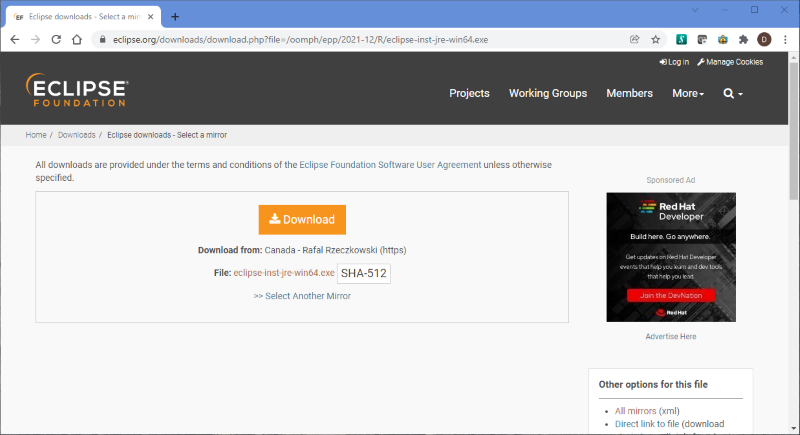

Click the “Download” button.

Install Eclipse IDE

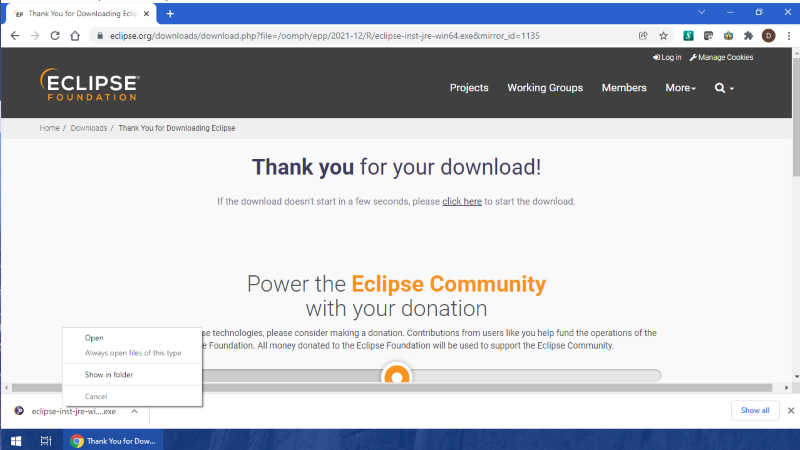

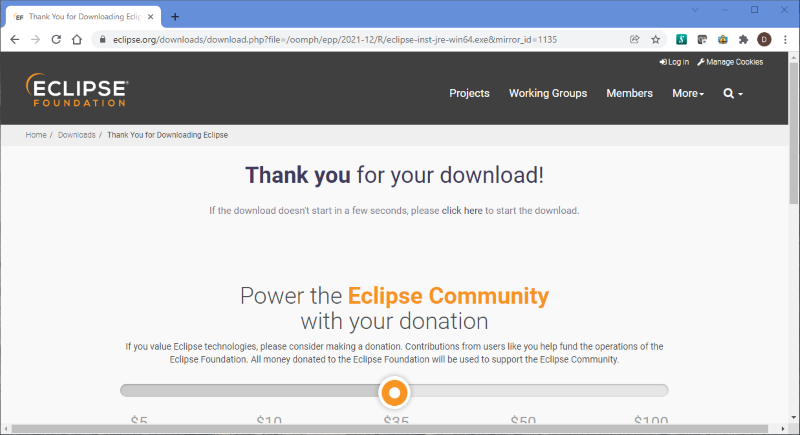

You may optionally make a donation to the Eclipse Community.

Install Eclipse IDE

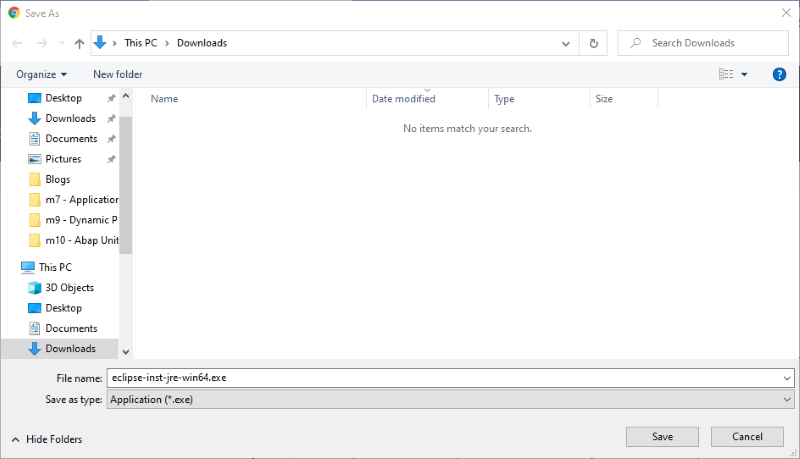

Then save the installation file to Downloads folder.

Install Eclipse IDE



Right-click the downloaded file and select “Open”.

Install Eclipse IDE



Click “Create a new Java project” to start the IDE.

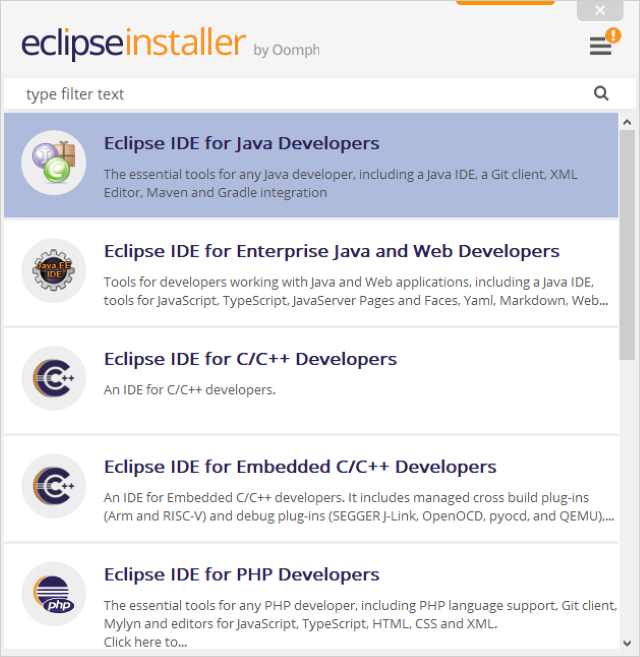

Select the first option: “Eclipse IDE for Java Developers”.

Install Eclipse IDE

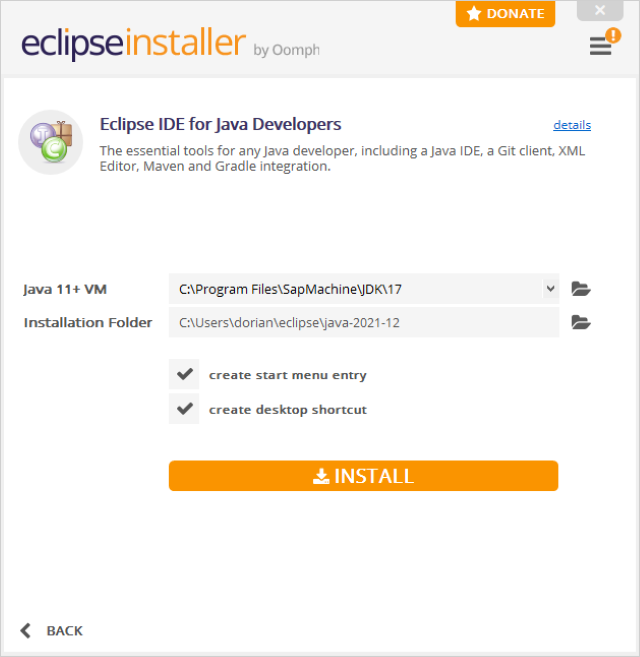

Check that all options are correct then click “Install” button.

Install Eclipse IDE

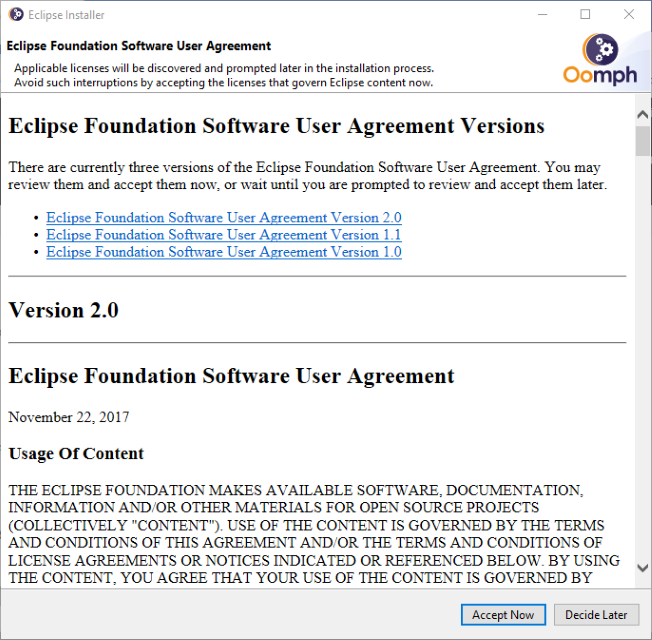

Accept the license agreement.

Install Eclipse IDE

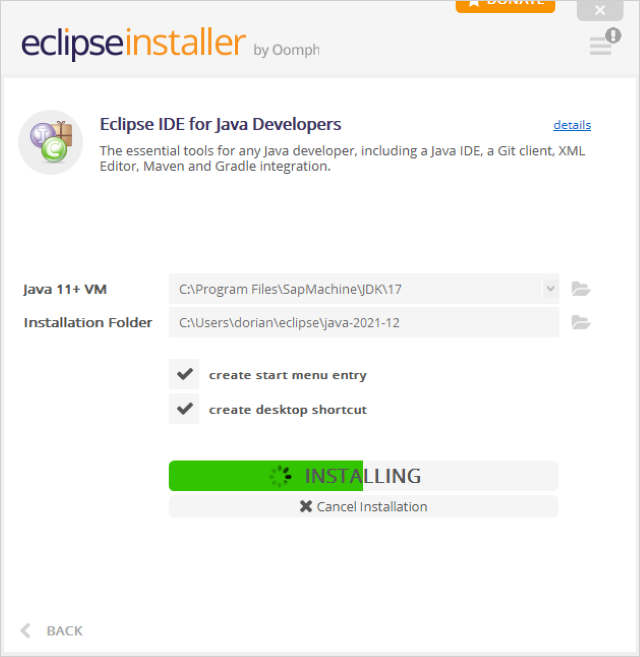

Installation will start.

Install Eclipse IDE

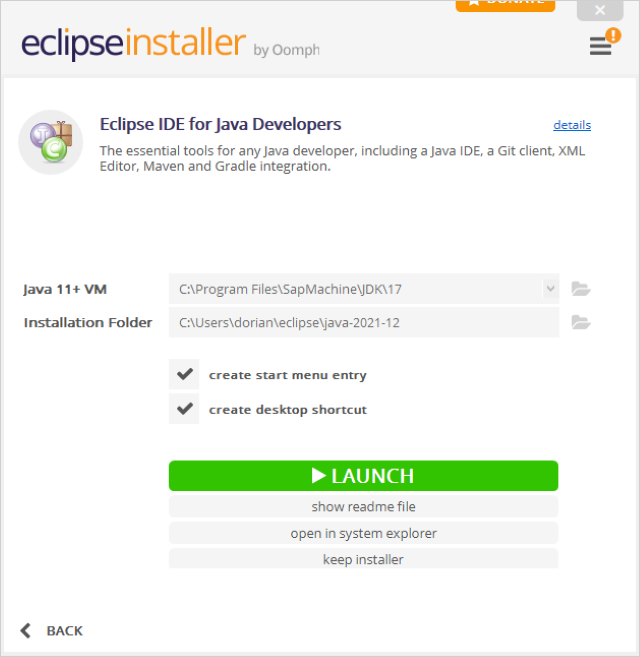

When installation is complete, click the “Launch” button to start the Eclipse IDE.

Install Eclipse IDE

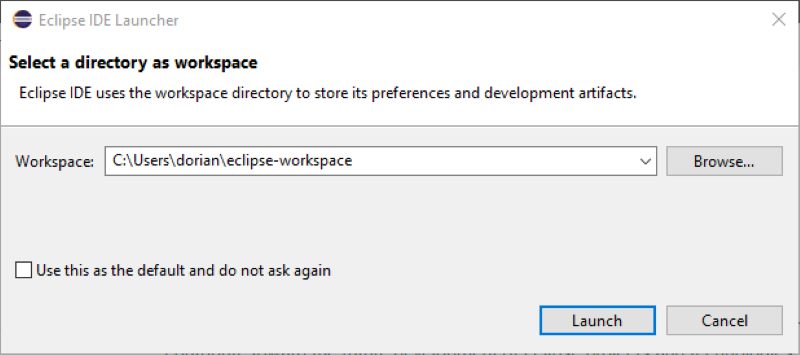

Change the location folder of the Eclipse default workspace if needed, then click “Launch” button.

Install Eclipse IDE

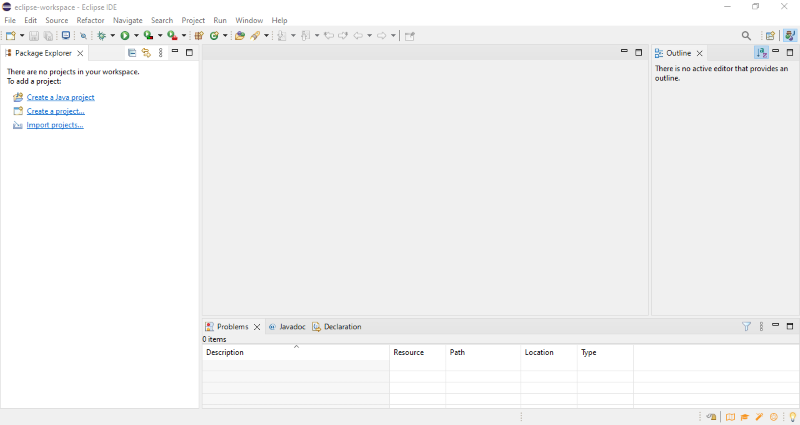

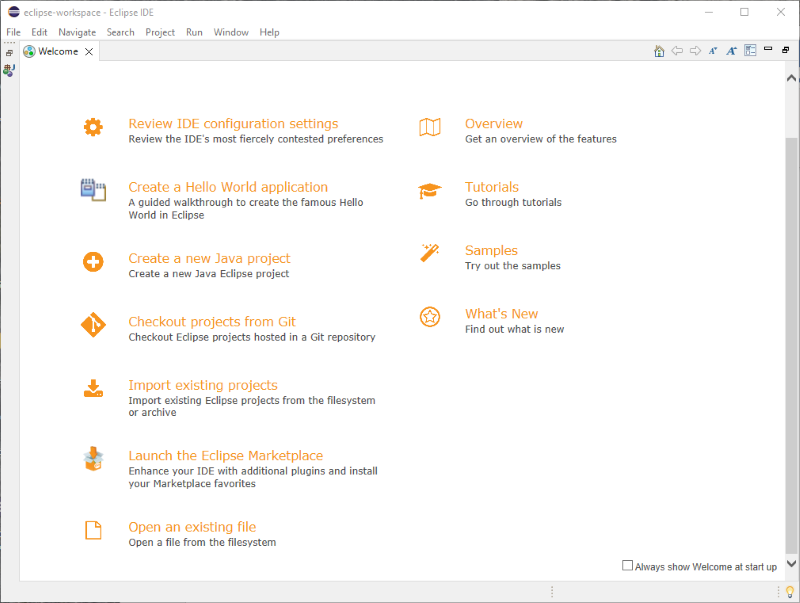

When the welcome page is displayed select “Create a new Java project” to start the IDE.



The Java aspect will be displayed. Next step is to install the SAP ADT plug-ins.

Install Eclipse IDE



Install SAP ADT Plug-ins

Installation of Eclipse plug-ins is done from the IDE help menu.

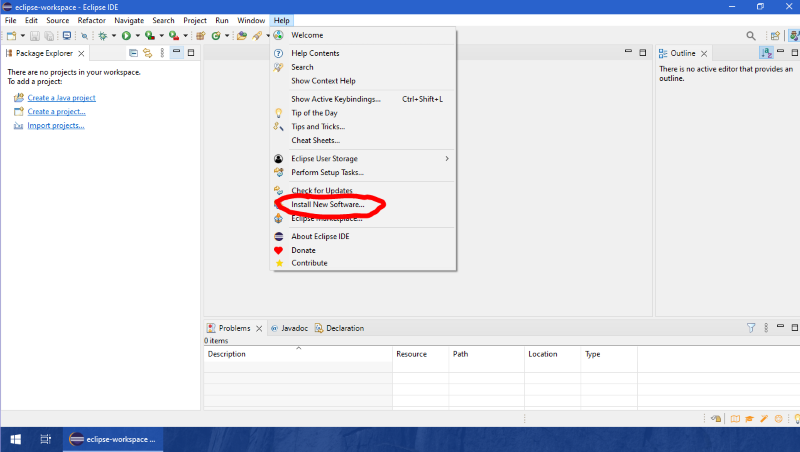

Click the “Help” toolbar button then click “Install New Software”.

Install Eclipse IDE

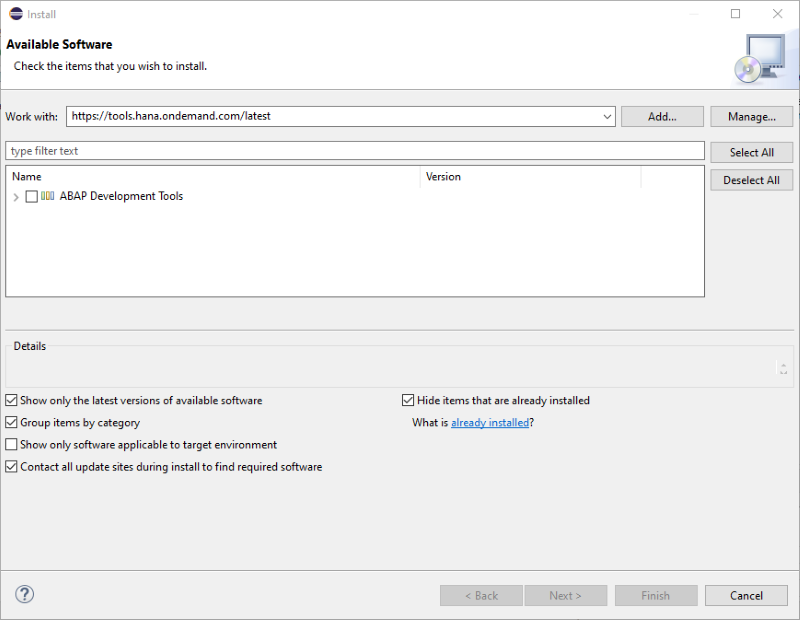

Enter the address “https://tools.hana.ondemand.com/latest” in the Work with field then press Enter key.

Install SAP ADT Plug-ins



Expand the ABAP Development Tools tree, select required items then click “Next” button.

Install SAP ADT Plug-ins

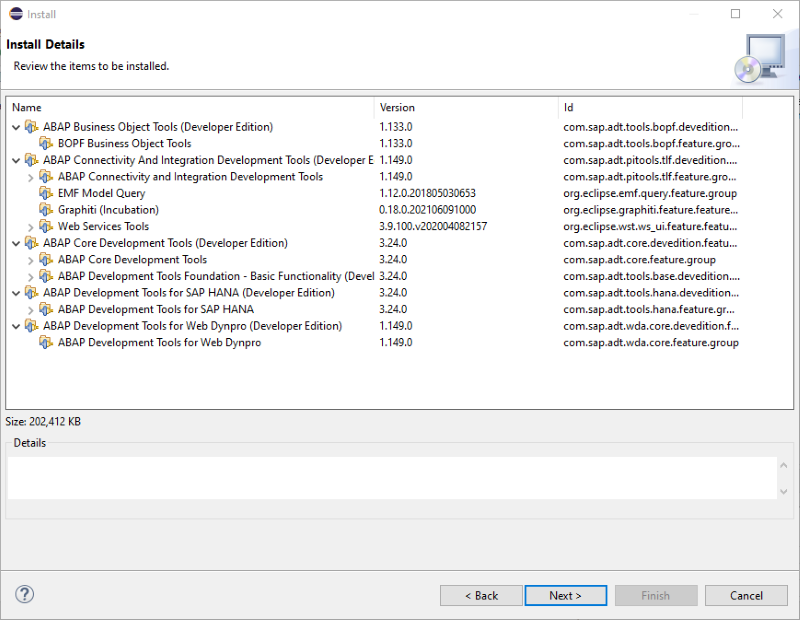

Review the generated list then click “Next” button.

Install SAP ADT Plug-ins

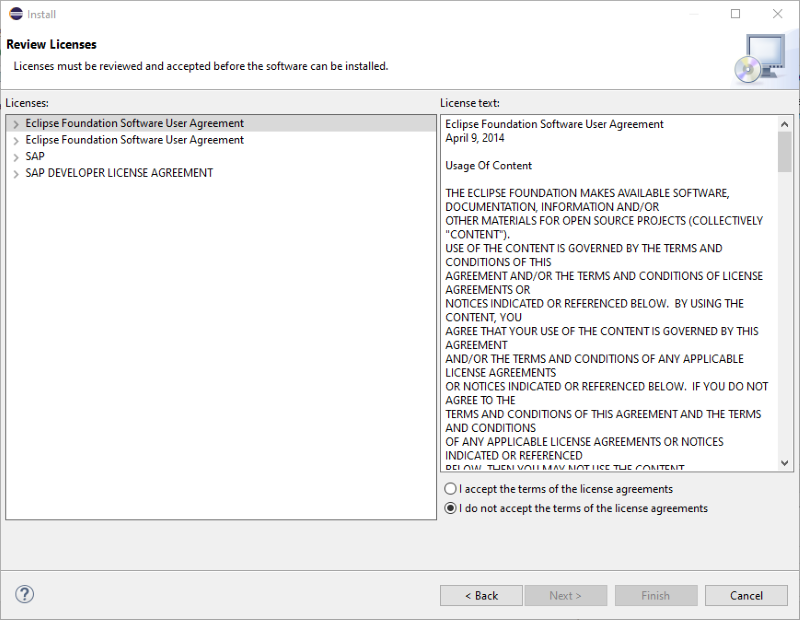

Accept the license agreements then click “Finish” button.

Install SAP ADT Plug-ins

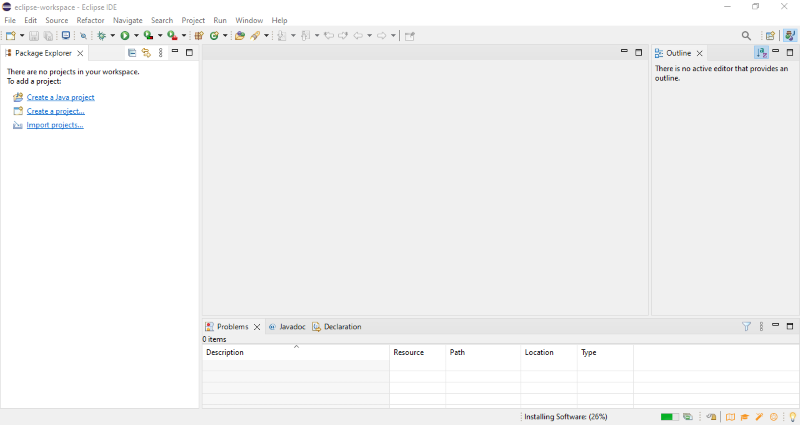

The SAP ADT plug-ins will be installed; a status bar at the bottom of the IDE will show installation progress

Install SAP ADT Plug-ins

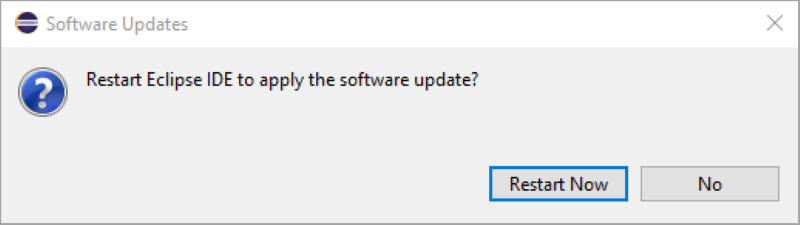

When installation is complete, the IDE must be restarted to activate the installed components. Click “Restart Now” button.

Install SAP ADT Plug-ins

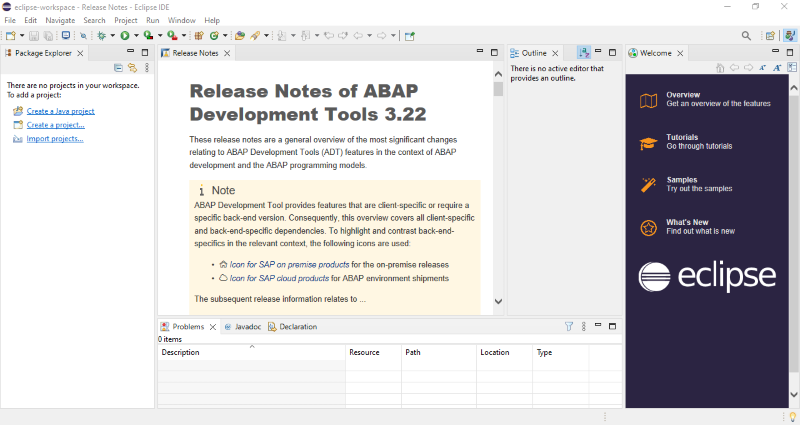

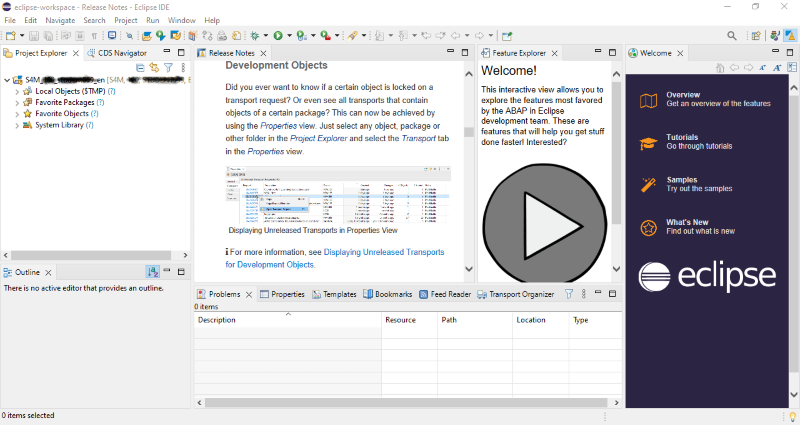

The IDE will be restarted. You will see the release notes for the ADT plugin displayed.

Install SAP ADT Plug-ins



Review the release notes for latest ADT information.



Connect to an SAP System

A connection to an SAP system is made by creating a new ABAP project.

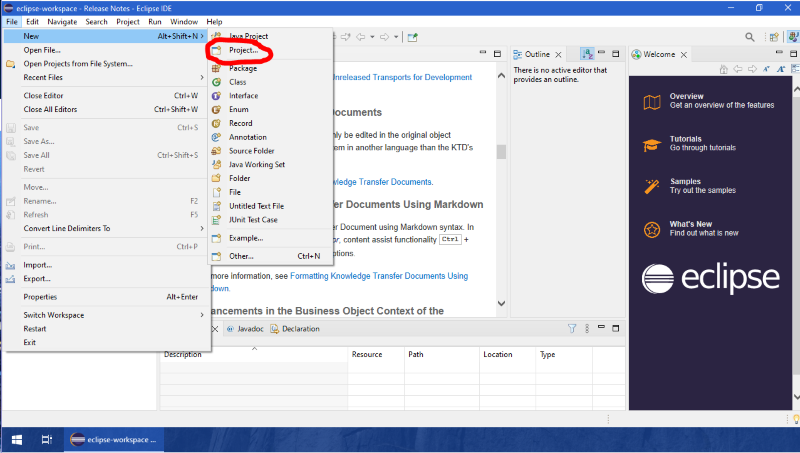

Use the toolbar menu path File à New à Project.

Install SAP ADT Plug-ins

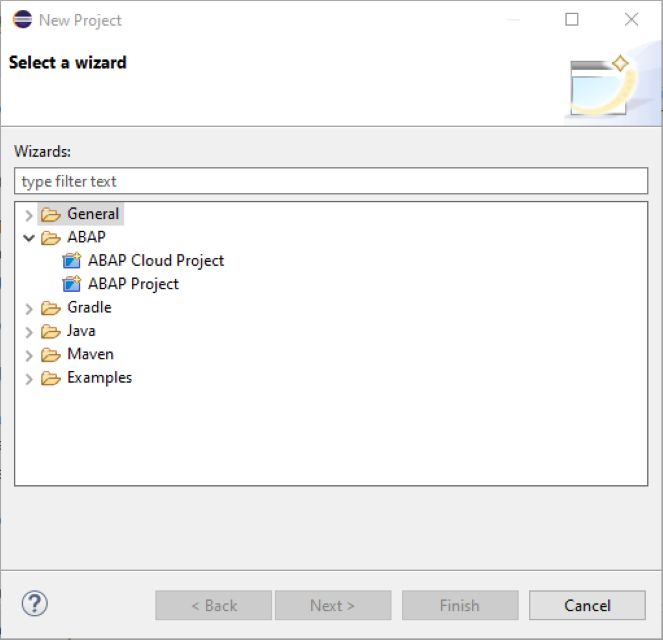

Expand the ABAP tree and select either “ABAP Cloud Project” for a cloud-based system or “ABAP Project” for an on-premise system.

Connect to an SAP System



In this example, we will connect to an on-premise system. Select “ABAP Project” and click “Next” button.

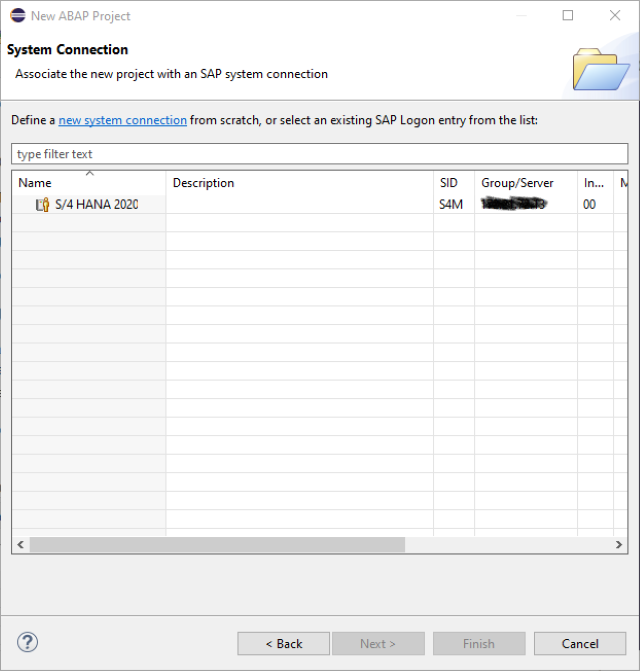

Any systems that are defined in an existing SAPGui installation will be displayed.

Connect to an SAP System



Either select an existing system or click “New system connection” to enter settings for a new system; entries for a new system will be similar to those for SAPGui.

In this example we will use the existing system. Select the system and click “Next” button.

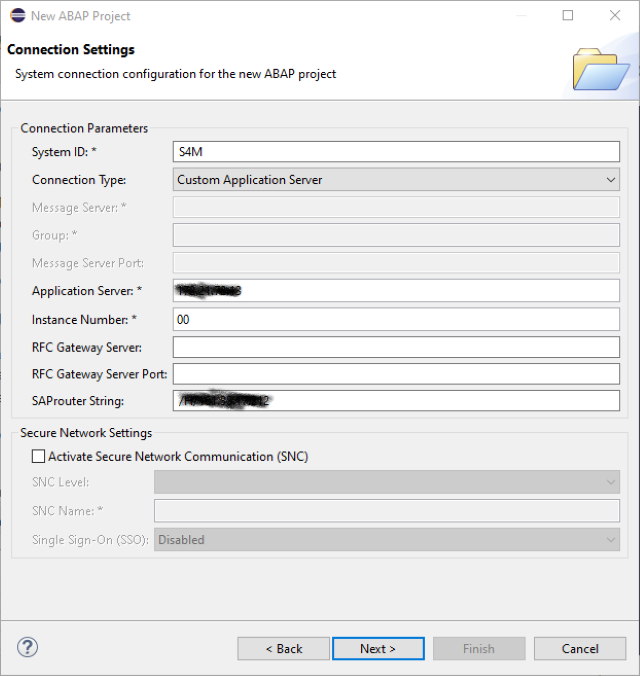

Confirm system definition entries and click “Next” button.

Connect to an SAP System



Enter login credentials and click “Finish” button.

Connect to an SAP System



Remember that this process was started using the Java perspective following installation. In future, we want to use the ABAP perspective for our development work.

Connect to an SAP System

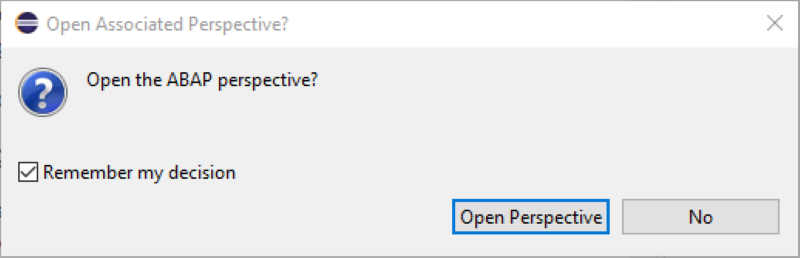

To set the ABAP perspective as the future default, enable the checkbox for “Remember my decision” then click the “Open Perspective” button.

The new system will be displayed in the Project Explorer pane using the ABAP perspective with a tree of objects beneath it.

Connect to an SAP System



The above process should not generate any error messages if:

1.    Valid system definition values are entered; and

2.    Valid logon credentials are provided; and

3.    Target system has been configured to allow access via ADT.

Details of required target system configuration can be found at this link: https://help.sap.com/doc/2e65ad9a26c84878b1413009f8ac07c3/201909.001/en-US/config_guide_system_backend_abap_development_tools.pdf

You should also consider reviewing my ABAP Programming Best Practices course to learn the advantages of ABAP Objects over the Classic ABAP programming style, and the best practices for code reuse and error handling. Also covered in my course is the use of ABAP tools and frameworks for efficient programming and abundant code samples to get you programming fast!
